Maintenance
•

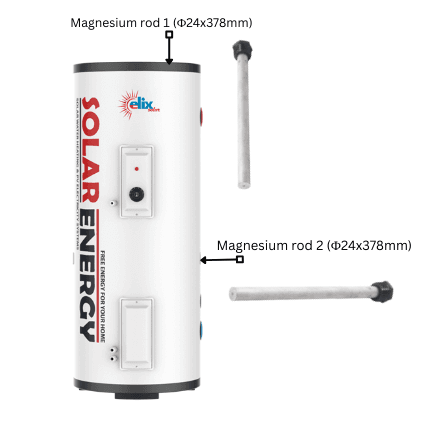

Rust Protection Magnesium Anode – Protects the inner tank surface from corrosion. The anode wears over time and must be inspected and replaced every 24 monthes.
Loading product details...
Technology designed for performance, efficiency, and reliability
Elix PV water heater can operate in solar-only mode to use no electricity from grid.
All excess solar energy is stored as a hot water even when there is no water demand at the time so it can be used later.
Porcelain-enameled tank ensures reliable operation with a 5-year water tank warranty.
No inverter needed - direct connection to solar panels with MC4 connectors. Can be connected to exisitng solar panels.
Increase PV panels energy yield by up to 30% with Elix MPPT controller.
Enhanced 54 mm insulation minimizes heat loss and maintains water temperature longer.
Seamlessly integrates into your home with sleek design and easy installation
Solar Heating Technology
Elix solar water heater uses two water heating elements: AC and DC elements. If DC solar energy isn’t enough, the AC (230V) can be used for consistent hot water — cloudy or sunny, day or night.
The Elix PV water heater acts as a battery that stores solar energy as hot water. When there’s plenty of sunshine but low hot water demand, it uses DC heating only mode, which converts surplus solar energy into hot water (up to 75 °C). 54mm insulation ensures minimal heat loss.
Instead of wasting excess solar energy, the system stores it as hot water for later use on cloudy days or at night—eliminating the need to send surplus electricity through an inverter or back to the grid.

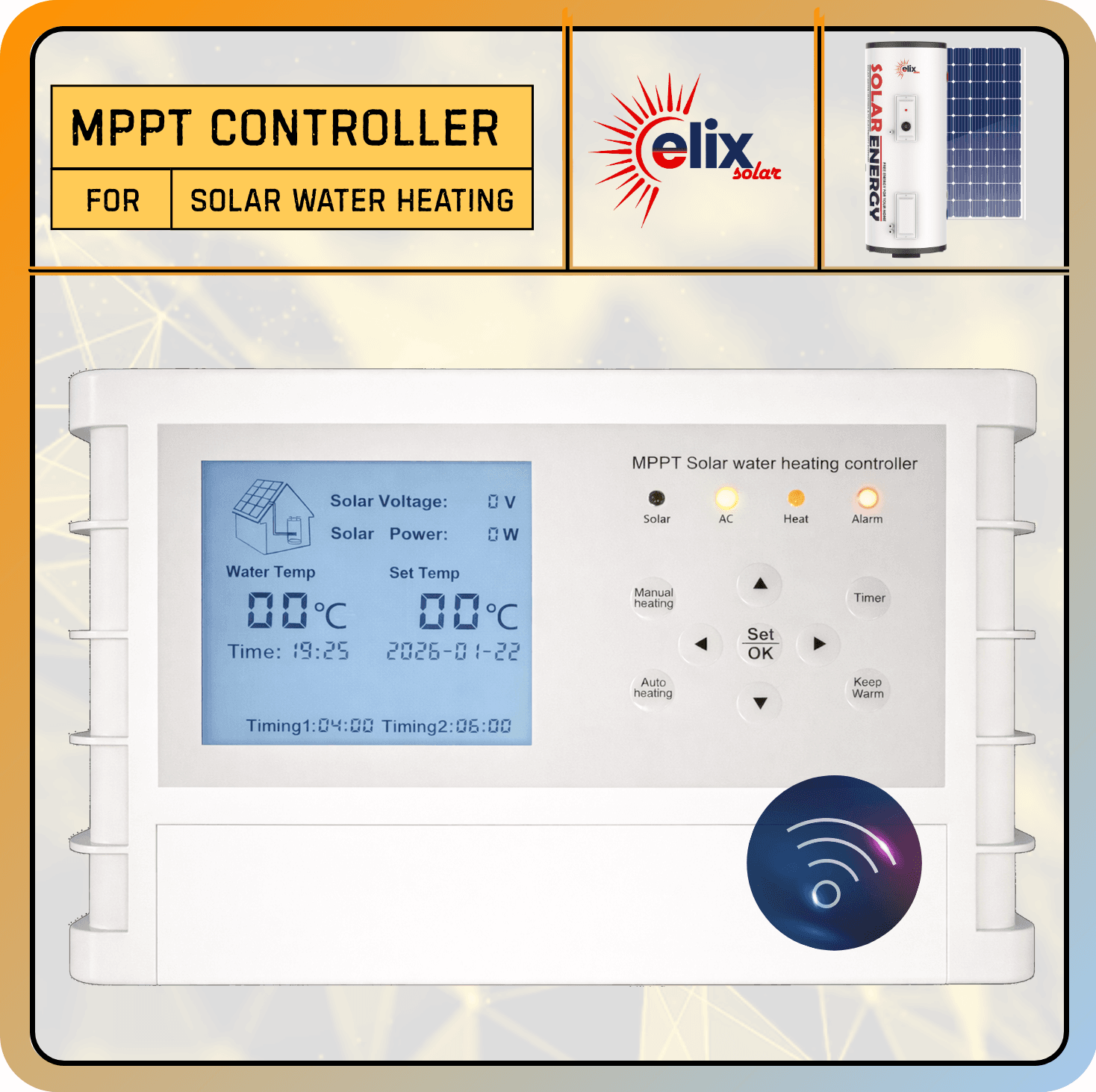

All Elix PV water heater models can be equipped with Elix MPPT controller. It continuously tracks the maximum power point of the solar panels for enhanced solar energy gains of up to 30%.
| Condition | Without MPPT | With MPPT |
|---|---|---|
| Full Sun | ~85-95% | ~98-99% |
| Cloudy/Low light | ~40-70% | ~80-98% |
| Average year | Baseline | ~25-35% |
Allows to control your Elix PV water heater with your phone (SmartLife app)!
PV power/voltage monitoring, mode switching, temperature adjustment.
Provides additional operating modes for PV water heater
Technical characteristics and DC heating performance of Elix PV Water Heaters
The table below shows how much 55 °C hot water (liters per hour) the boiler can continuously supply in DC only heating mode with different power outputs from PV panels. This helps to see what to expect under various sunlight conditions and solar panel sizes.
| DC heating power (W) | Hot water supply 55 °C (L/h) |
|---|---|
| 0W | 0.0 L/h |
| 100W | 2.15 L/h |
| 500W | 10.70 L/h |
| 750W | 16.05 L/h |
| 1100W | 23.55 L/h |
| 1500W | 32.00 L/h |

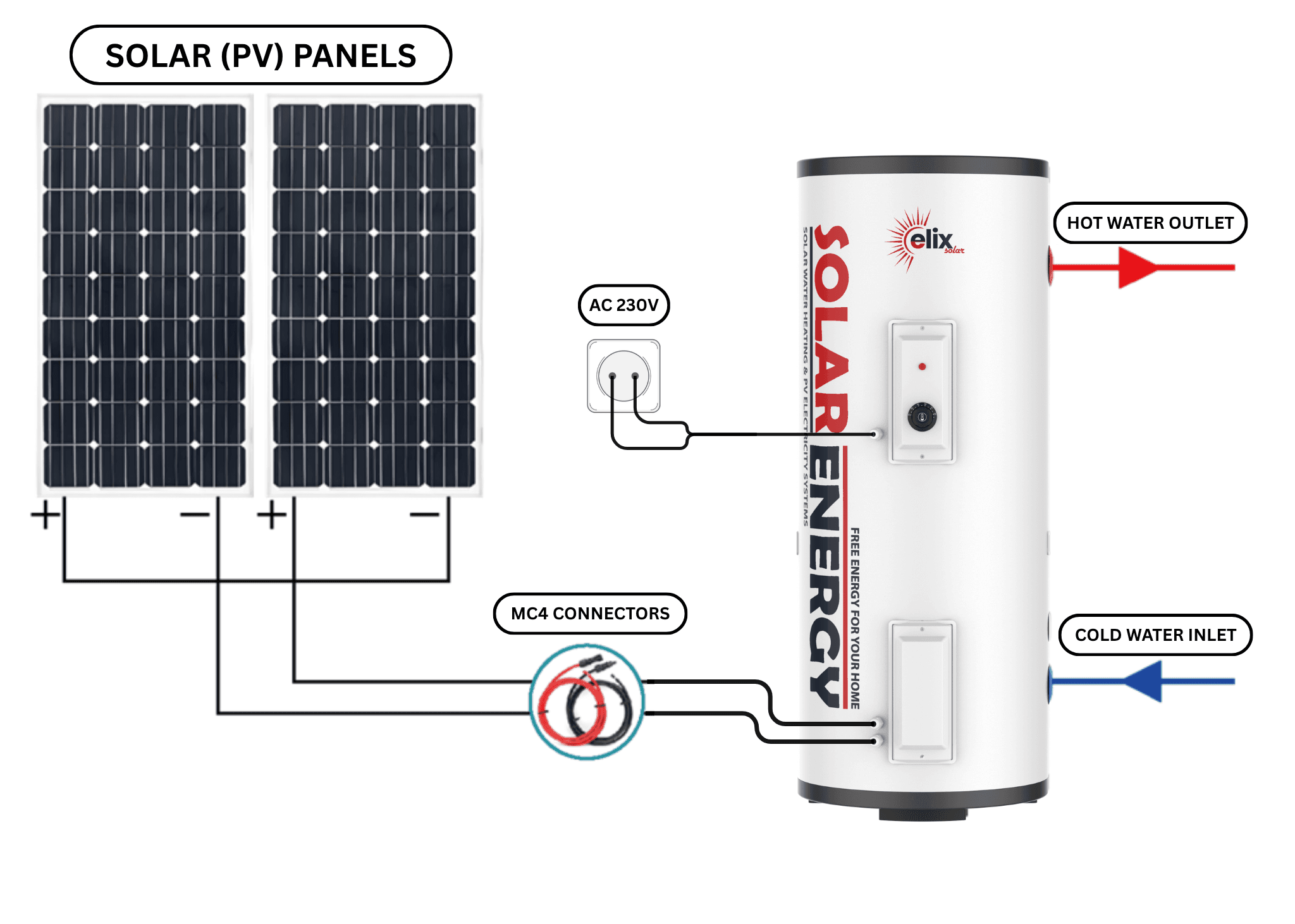

Solar panels are simply connected with MC4 cables directly to the water heater. There’s no need for an inverter.
Additionally, water heater needs to be connected to AC 230V socket to provide power for AC water heating element

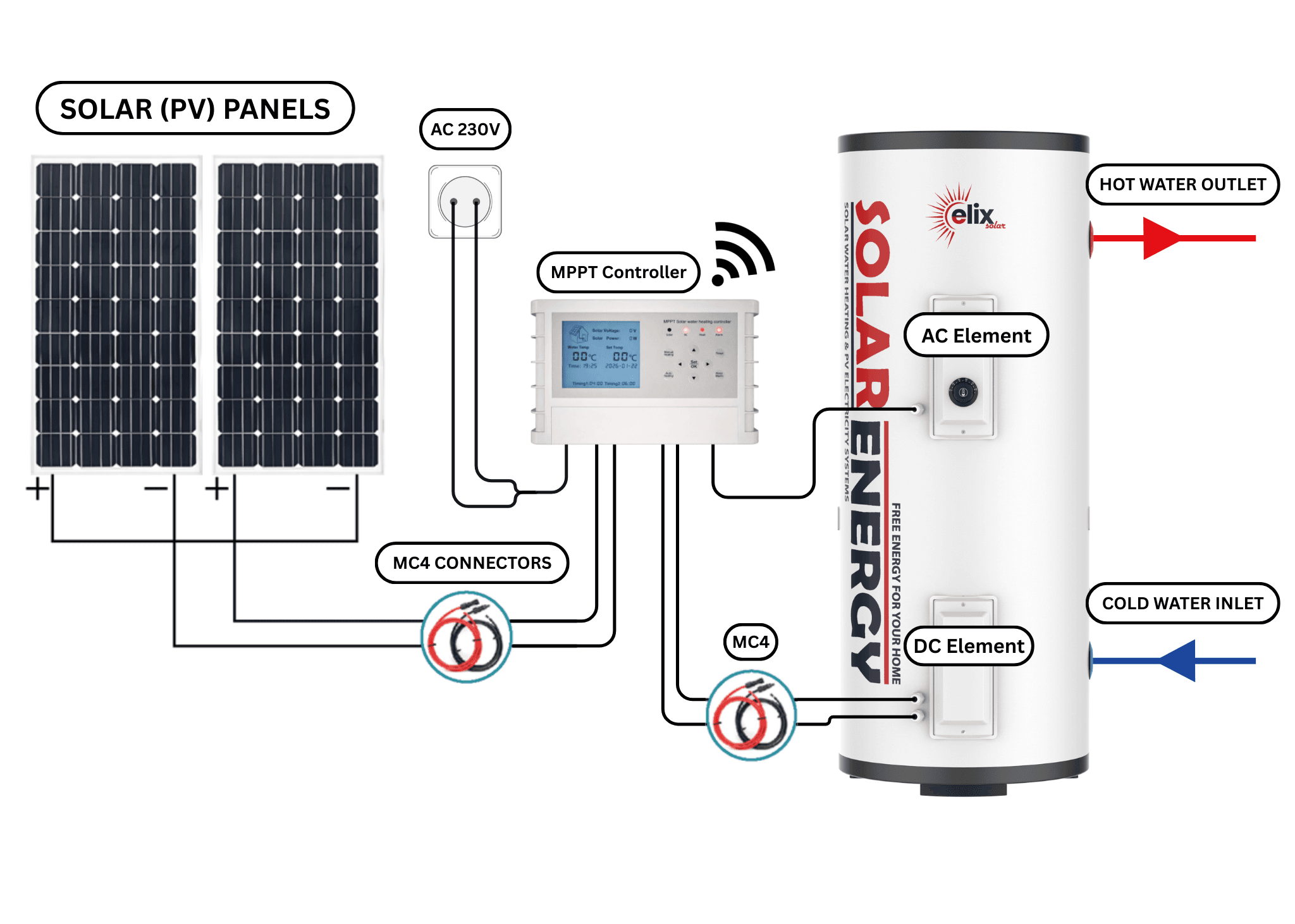

PV panels and 230V AC grid connect to the controller's input.
Controller outputs connect to the water heater's DC (direct solar) and AC heating elements.
Rust Protection Magnesium Anode – Protects the inner tank surface from corrosion. The anode wears over time and must be inspected and replaced every 24 monthes.
