ACCESSORIES FOR SOLAR WATER HEATERS

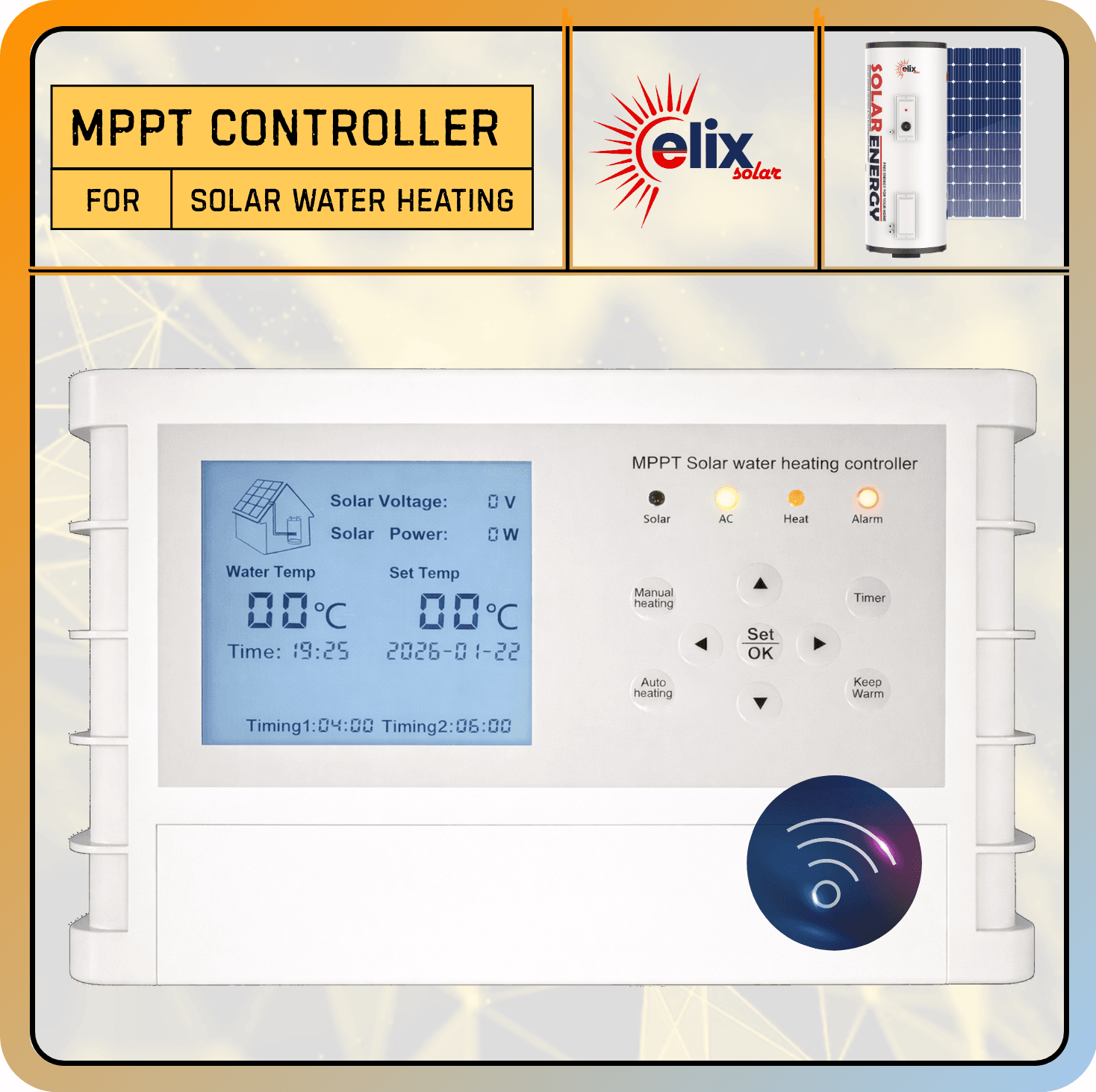

MPPT Controller for PV150/PV200

MPPT Solar Controller optimizes power extraction from solar panels. With MPPT solar panels can achieve up to +30% higher energy yield. MPPT Controller is specifically engineered for integration with Elix PV150 and PV200 photovoltaic water heaters. It enables advanced control of Elix PV water heater via the SmartLife app over WiFi.

Price

€269

Smart Solar Control

Details

•MPPT technology – Continuously tracks the maximum power point of the solar array for optimal energy harvest under all weather and temperature conditions.

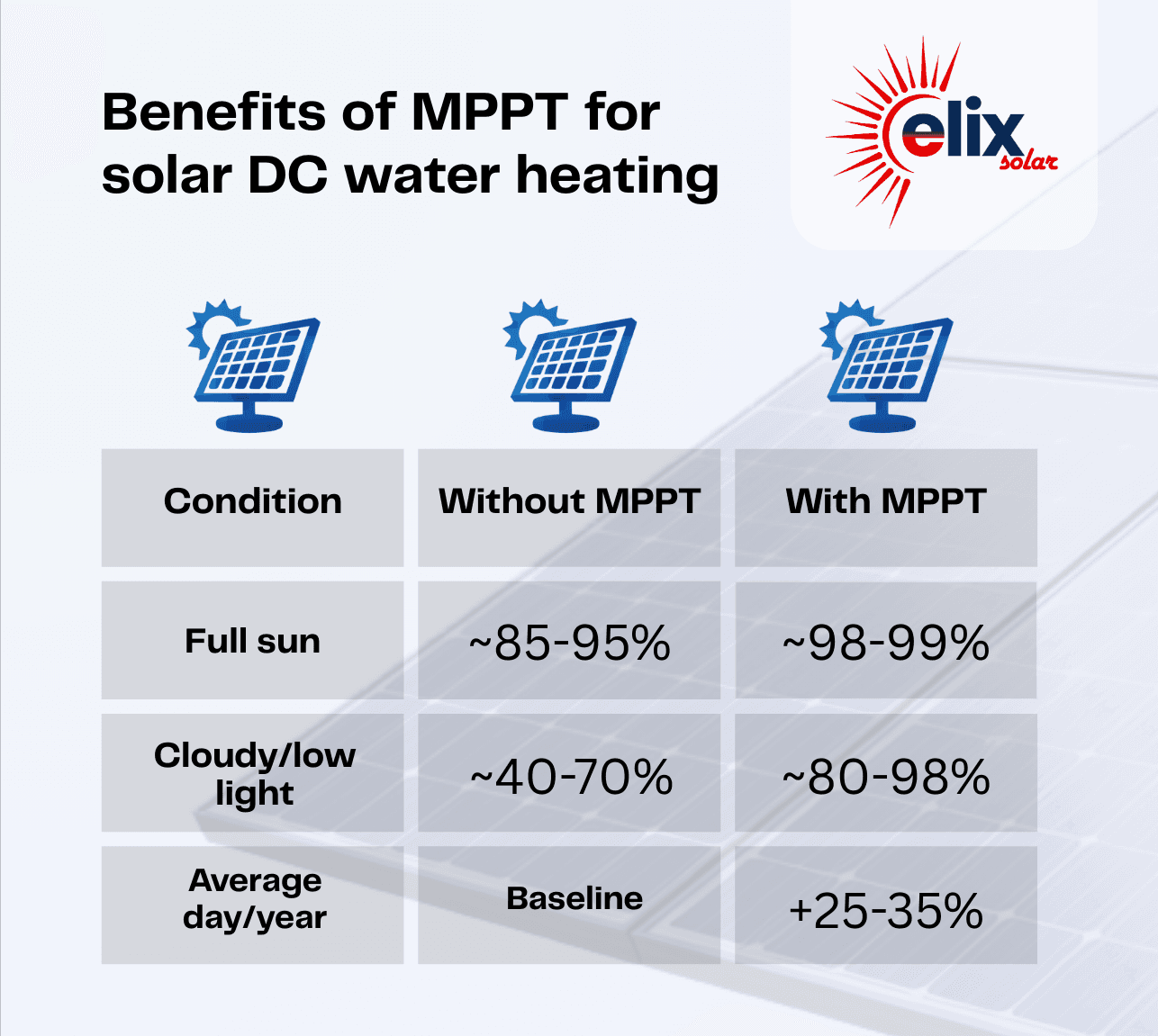

•Increases solar energy yield by 25–30%

•

Allows to control your Elix PV water heater with your phone!

○WiFi connectivity with SmartLife app: PV power/voltage monitoring, mode switching, temperature adjustment.

○Multiple operating modes: Solar Priority (full PV use), Hybrid (solar + grid), solar and AC intelligent switching, heat preservation, and timer scheduling.

•LED display for real-time status.

•Compatible with all Elix solar models.

•Ideal for retrofitting existing Elix PV water heaters

Controller Data

Technical Specifications

max. open circuit voltage of the solar panel arrayVoc 150V

max. AC voltage230V

max. current between controller and PV panel20A

max. current between controller and DC element20A

max. current between controller and AC element13A

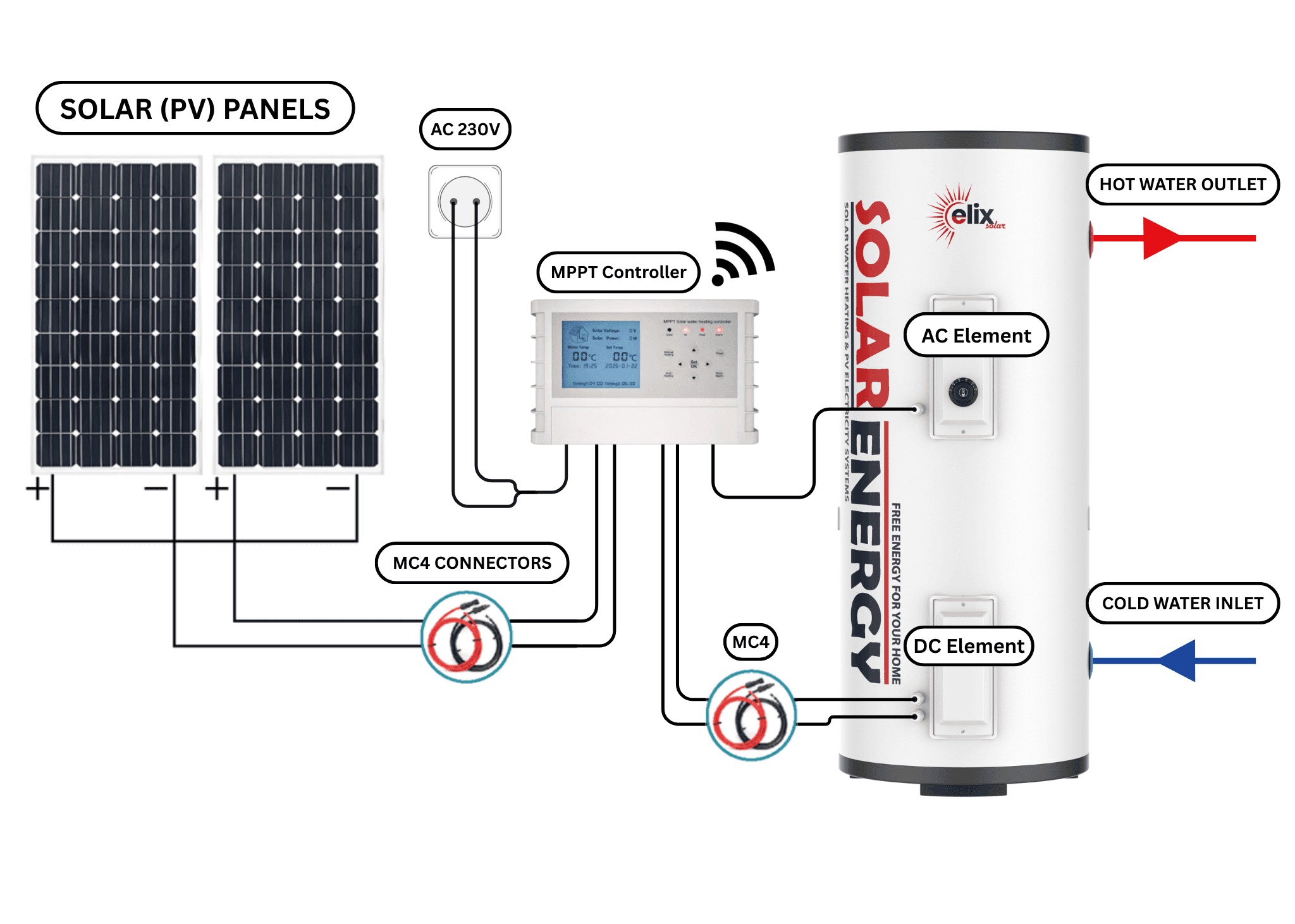

Wiring & Installation

Connection

•PV panels and 230V AC grid connect to the controller's input.

•Controller outputs connect to the water heater's DC (direct solar) and AC (grid-assisted) heating elements.

•MPPT installation and retrofitting in details can be found in manual.
