Key Features

Technology designed for performance, efficiency, and reliability

High Efficiency - COP 4.0

Delivers up to 4× more heat energy than electricity used.

Efficient Sub-zero Operation

Efficiently operates in temperatures as low as -7°C, with a built-in electric element ensuring reliable hot water even in colder conditions.

Quality Guaranteed

Porcelain-enameled tank ensures reliable operation with a 5-year water tank warranty.

R290 Refrigerant

Uses eco-friendly R290 refrigerant with higher efficiency and reduced energy consumption.

Ultra-Quiet Operation

Operates at under 42 dB, ensuring quiet performance without disturbance.

Excellent Insulation

Enhanced 54 mm insulation minimizes heat loss and maintains water temperature longer.

SCROLL TO EXPLORE

How it Works

A hybrid heat pump water heater uses two water heating mechanisms:

Air-to-water heat pump (ECO mode):
Extracts heat from surrounding air and transfers it to water, delivering up to four times higher efficiency (COP 4.0) than traditional electric heaters.

Electric heating element (Hybrid mode):
Provides backup heating during high water demand or extremely low temperatures, ensuring a consistent hot water supply year-round.

Most of the time the system uses ECO mode. When operating in ECO mode all day, the water heater consumes approximately 5.7 kWh per day-equivalent to around €1 in EU electricity costs. System can operate efficiently in ECO mode even in sub-zero temperatures down to -7°C.

Quality

Porcelain-enamel tank offering high corrosion resistance.
54 mm water tank heat insulation.
Highly efficient microchannel heat exchanger with a larger heat transfer area. The heat exchanger does not come into contact with the water in the tank, eliminating corrosion and leakage risks.
Enclosure made of galvanized steel.
Built-in magnesium protection anode rod.
LED display with touch control.
Intelligent defrosting system.

New Technologies

The new generation of ELIX hybrid heat pumps uses a new heat exchanger system that includes a new compressor and the innovative refrigerant R-290.

Advantages of the R-290 Refrigerant:

Environment-Friendly: R-290 refrigerant has ultra-low GWP of 3 and zero Ozone Depletion Potential.
Energy Efficiency: R-290 offers better thermodynamic performance with higher coefficients of performance (COP) than R-134a.
Low Operating Pressure: Lower operating pressure reduces component stress and wear.
Energy Savings: Systems using R-290 require a smaller amount of refrigerant which results in lower electricity consumption.

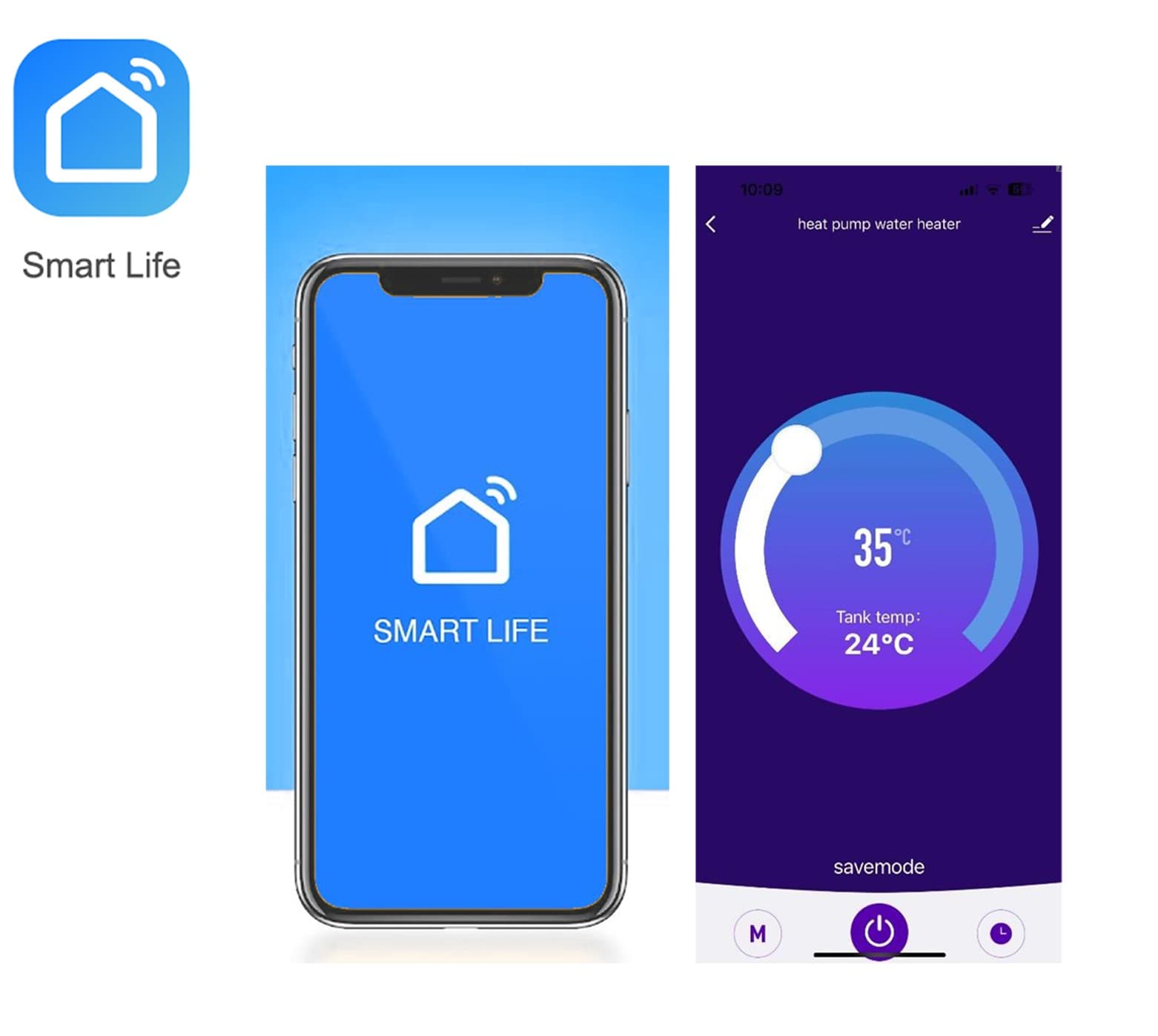

WiFi Functions - 'Smart Life' app.

Temperature adjustment/modification.
Ability to schedule operating times.
Power on/off control.
Select mode: ECO/Hybrid
Set operation during off-peak hours to reduce electricity costs.

Advantages of Using the ELIX Hybrid Heat Pump with a Separate Heating System

Energy Savings: Separating heating and hot water production allows the central boiler to be switched off outside the heating season, resulting in significant energy savings.
Extended System Lifespan: Turning off the central heating system during summer months helps to prolong its lifespan.
Independent System Control: Hot water and space heating can be managed separately, allowing more precise energy use and better system optimization.

Use Your Home's Heat

It is possible to connect the home’s ventilation system to Elix heat pump using air ducts to allow the heat pump to capture and reuse heat from warm indoor air before it is vented outside. Instead of allowing house ventilation to vent out hot air outside, the system may capture it to heat water, significantly improving efficiency especially when outside temperature is low.

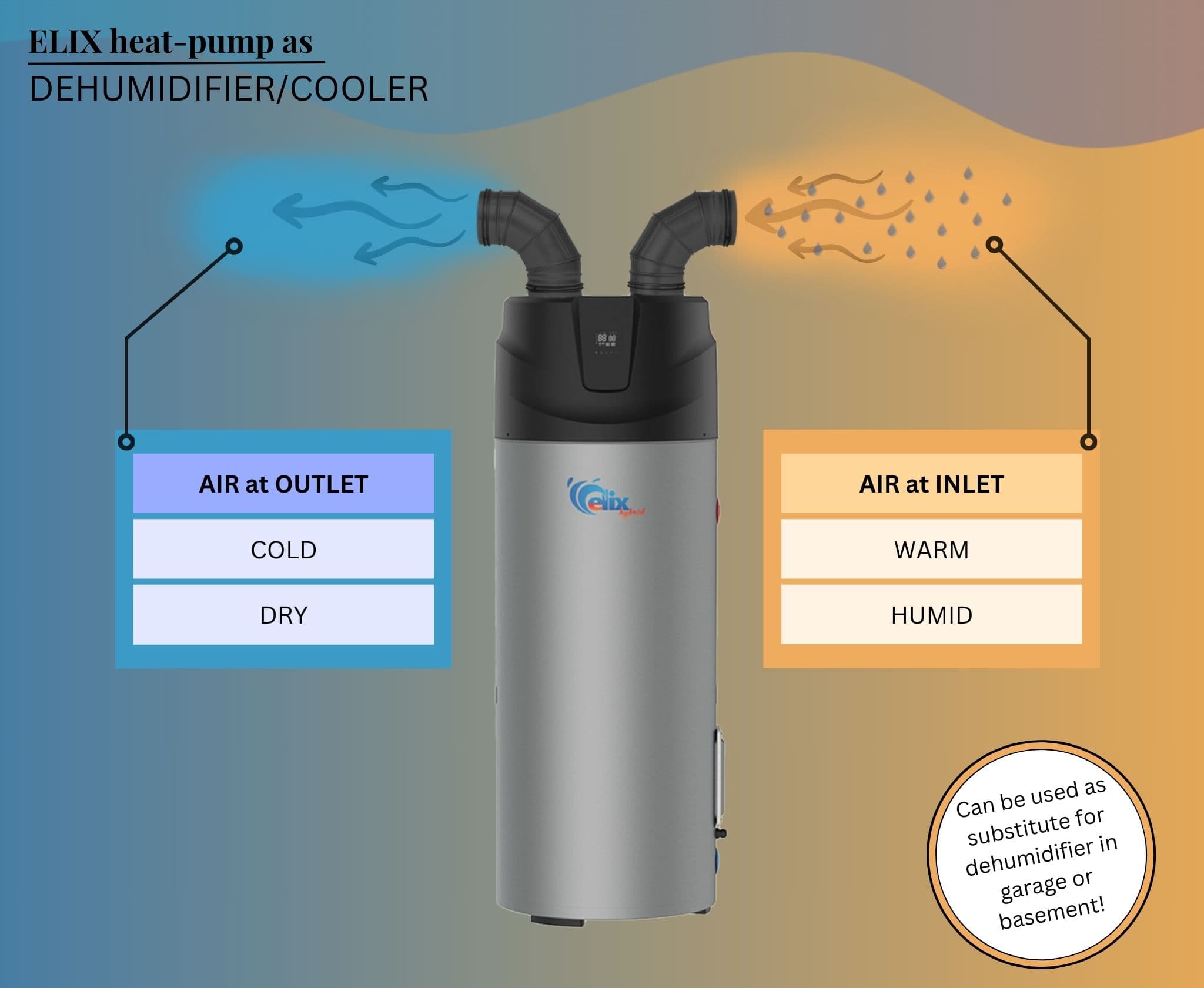

Dehumidifier/Cooler Function

The ELIX hot water heat pump can dehumidify and cool air. During operation, it extracts heat and moisture from the surrounding air by condensing the moisture with the help of the evaporator coil. The condensed water is drained away, making the air drier and cooler.

Technical Data

Detailed performance data for the Elix HP200/HP300 Heat Pump Water Heater

General Technical Data

Optimal Air Inlet Temperature-7°C to +45°C

Noise Level< 42 dB

Electric Heating Element2500 W

Heat Pump Power394 W

RefrigerantR290 (150g) • GWP 3

Smart ConnectivityWi-Fi (SmartLife App)

Dimensions

300L ModelØ650 × 1850 mm

200L ModelØ650 × 1460 mm

Annual Electricity Consumption (ErP)

300L Model1206 kWh/year

200L Model1192 kWh/year

Usage Recommendations

300L ModelIdeal for 6 people

200L ModelIdeal for 4 people

Electricity consumption for continuous water heating (24h, ECO mode)

300L Model1206 kWh/year

200L Model1192 kWh/year

Coefficient of Performance (COP)

Inlet Air Temperature	COP
20–25°C	4.0
10°C	3.2
-5°C to 0°C	2.0

Heat Pump Only Mode Water Production Rate

Conditions

•Inlet water temperature: 10°C
•Initial water temperature in tank: 10°C
•Outlet (target) water temperature: 55°C
•Mode: ECO (heat pump only heating)

Inlet Air Temp	COP	Water Production (55°C)
20°C	4.0	35 L/h
10°C	3.2	28 L/h
-5°C	2.0	23 L/h

Possible Options for Air Intake & Exhaust

When the heat pump is installed in a room (e.g., garage, utility room, or basement), there are several options for where the air can be drawn from and where it can be vented out:

1. Air intake from the room and air exhaust to the outside

• COP (4.0) is high and constant.
• Effect of room ventilation.

2. Air intake from the room and air exhaust into the room

• Dehumidifier effect.
• Room air cooling.
• COP (4.0) is high and constant.

3. Air intake from outside and air exhaust to the outside

• COP depends on the outside temperature.
• Room air remains unaffected.

4. Air intake from house ventilation and air exhaust to the outside

• COP (4.0) is high and constant.
• Room air remains unaffected.

Installation Requirements for ELIX Heat Pump

Power supply: 230V~ / 50Hz
Drain pipe for the drain valve: Threaded Rc3/4. Direct to floor drain or external drainage.
Drain pipe for condensate: Threaded G3/4. Direct to floor drain or external drainage.
Expansion vessel: Optional

Cold water inlet: Threaded G3/4 (internal thread)
Hot water outlet: Threaded G3/4 (internal thread)
Air ducts (optional): Ø160 mm. Maximum length 3 meters each.
Pipe for pressure and temperature relief valve (PTR): Valve thread Rc3/4. Direct the PTR pipe to a floor drain or external drainage system.

Maintenance of the ELIX Heat Pump

•The lever handle of the pressure and temperature relief valve (PTR) should be lifted and released at least every 6 months to ensure the valve's flexible operation.
•It is recommended to regularly drain the water tank and flush it with water to remove sediment from the bottom of the tank every 6 months.
•The drain line should be checked for blockages or residues every 6 months.
•The magnesium anode rod (corrosion protection component) should be replaced at least every 2 years.
•The evaporator and refrigeration circuit should be inspected and cleaned for dust and debris every 5 years.
